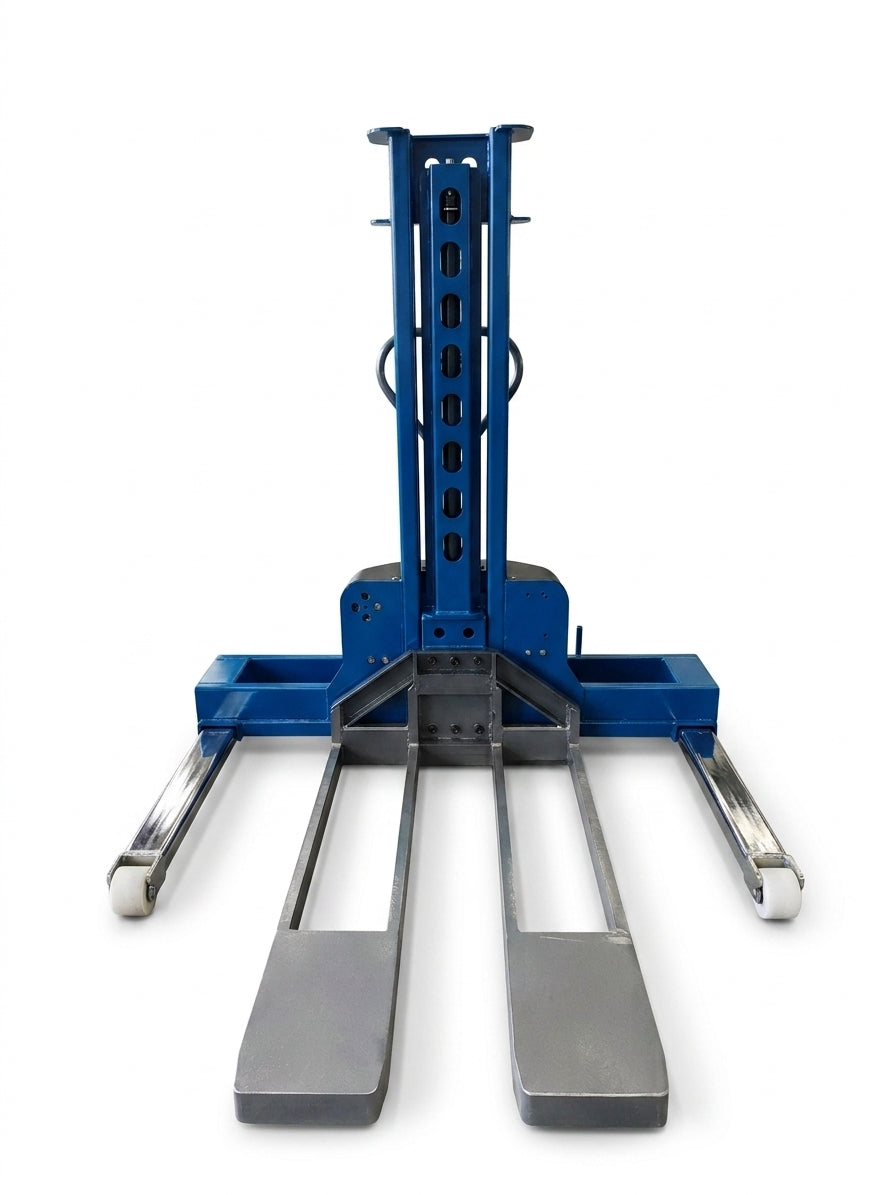

Self-Loading Straddle Stacker (2200 Lbs Capacity)
Self-Loading Straddle Stacker (2200 Lbs Capacity)
The TENX SLS10B is a compact, full-electric self-loading stacker built for efficiency and reliability, enabling dockless delivery without a lift gate. With a 2,200 lbs capacity and a 51-inch lift height, it offers the strength of a forklift with >42” straddle legs openings accepting 48” × 40” U.S. GMA closed-bottom pallets from one direction, and not too wide for balanced maneuverability.
Perfect for warehouses, last-mile delivery, and retail operations, this stacker combines power, agility, and long battery life to keep your business moving.
- Self-Loading System for Dockless Delivery: Loads and unloads itself with the cargo directly into vans, trucks, or a loading dock.
- Lithium Battery Power: Quick-charging and long-lasting for extended operation time.
- Straddle Legs: >42” straddle legs openings compatible with 48” × 40” U.S. GMA closed-bottom pallets from one direction, and not too wide for balanced maneuverability.
- High-roof Cargo Van & Truck: Compatible with door height >70”. Straddle leg models require wheel-well clearance >54” like Ram ProMaster and Ford Transit, but not Mercedes Sprinter or Chevy Express/GMC Savana which does not fit.
Note: Cargo vans with a step bumper require aluminum plate accessories to create a 90° loading platform during loading and unloading.
Specifications
| Specification | SLS10B |
|---|---|
| Wheel Type | Standard (Poly) |
| Max Load Capacity | 2,205 lb |
| Pantograph Scissor Reach | None |
| Max Fork (Lift) Height | 51.2" |
| Overall Height, Mast Lowered | 65.8" |
| Overall Height, Forks Raised | 113.3" |
| Overall Length | 63.1" |
| Overall Width | 51.7" |
| Turning Radius | 51.7" |
| Straddle Legs Inner Opening | 42.3" |
| Fork Length | 49.2" |
| Fork Outside Width | 27.0" |
| Fork Inside Opening | 8.1" |
| Load Center | 19.7" |
| Lift Speed | 130 fpm |
| Lowering Speed | 236 fpm |
| Travel Speed (Creep / Full) | 0.3 / 1.9 mph |
| Gradeability (Loaded / Empty) | 5% / 10% |
| Li-ion Battery | 48V / 15Ah |
| Weight (w/ battery) | 877 lb |
